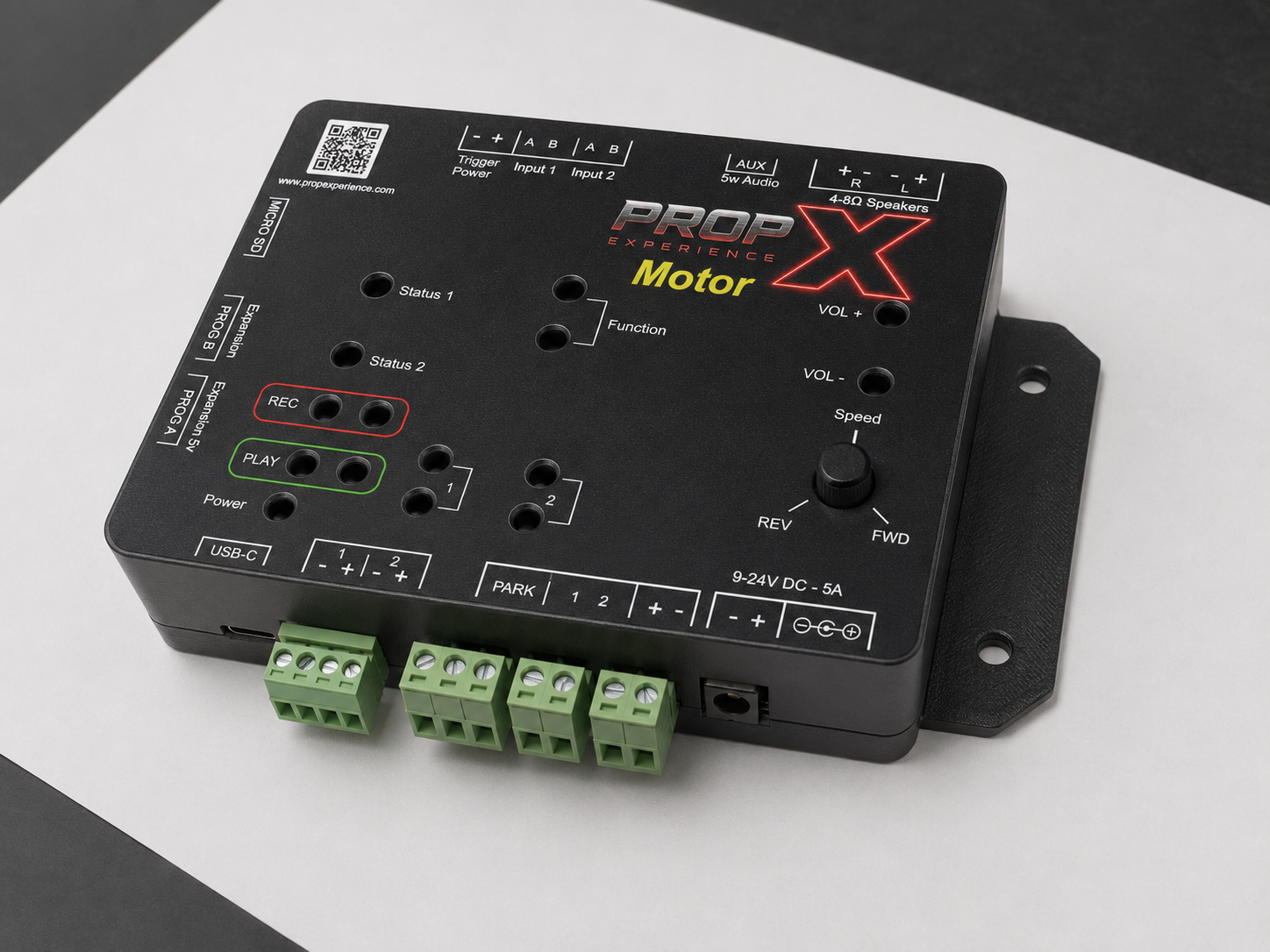

PropX Motor

The Pro's brain, built for props that move under power. Same platform — 38W×2 amp, dual-polarity inputs, control panel, RTC, expansion — tuned for motion. Two high-current outputs drive DC-motor props, actuators, and winches, with a dedicated park input to send the prop home.

• Motor output — up to 10A, current sensing, thermal + overcurrent protection
• Park input (dual polarity) to return the prop to home position

• 2 solid-state outputs — 1.5A per channel, 5A total, with current sensing, thermal + overcurrent protection
• 2 dual-polarity trigger inputs
• 38W × 2 onboard amplifier + 5W audio jack
• microSD card storage
• 9–24V DC input
• Multi-function control panel
• programming + expansion ports
• Real Time Clock for scheduling triggers
• Optional LoRa wireless - long range low power wirless
• DMX capable (not isolated — use with care)
